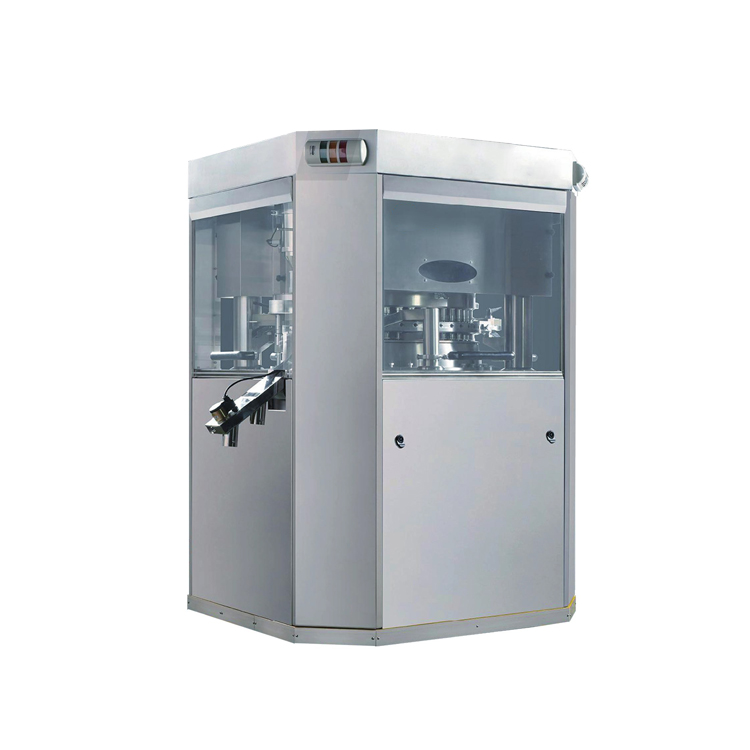

Home » Products » Tablet Press Machine » GZPK660 Automatic Double Discharge High-speed Tablet Press
GZPK660 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
GZPK660 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
Main Features
Double layer three wheel packing system, balanced powder density.
The touch screen software of human-machine interface is easy to operate and has the function of self diagnosis of fault points.
The touch screen hydraulic pressure controls the pressure of the main pressure wheel and the pressure of the pre pressure wheel, with low noise.
No handwheel control, servo motor control filling system, fast response.
The automatic detection function of chip weight and the automatic recognition and elimination function of waste chips appear.
Upper and lower punching over tight protection, electric control system protection, host overload shutdown protection, forced feeding motor overload protection, system failure
Full automatic alarm protection.
Automatic lubrication system, through automatic control to ensure that each lubrication point get regular and quantitative lubrication.
Production information can be displayed, printed and stored.
Technical parameters
|
Data |
45 |
47 |
55 |
75 |
|
No. of stations |
45 |
47 |
55 |
75 |
|
Output range (Tablets/h) |
432000 |
451200 |
528000 |
720000 |
|
Max filling depth |
20mm |
18mm |
||
|
Max. Major Pressure (kn) |
100KN |
|||
|
Max. Pre-pressure (kn) |
20KN |
|||
|
Max length of irregular tablet |
1 ~ 8mm |
|||
|
Round tablet diameter |
25mm |
16mm |
13mm |
|
|
Max length of irregular tablet |
<25mm |
<18mm |
<16mm |
|
|
Weight tolerance |
±3% |
|||
|
Noise |
≤80dB |
|||
|
Motor Power (kw) |
11.5-13KW |
|||
|
Dimension of machine |
1260x1260x1950 |
|||
|
Weight |
3950 kg |
|||
|
Remarks |
The maximum output refers to the maximum output achieved when the sheet type is circular, the small sheet diameter and the rotating speed are the highest. The yield is different with different diameter and type. |
|||
