Home » Products » Tablet Press Machine » DP Serits lptd Single Punch Tablet Press

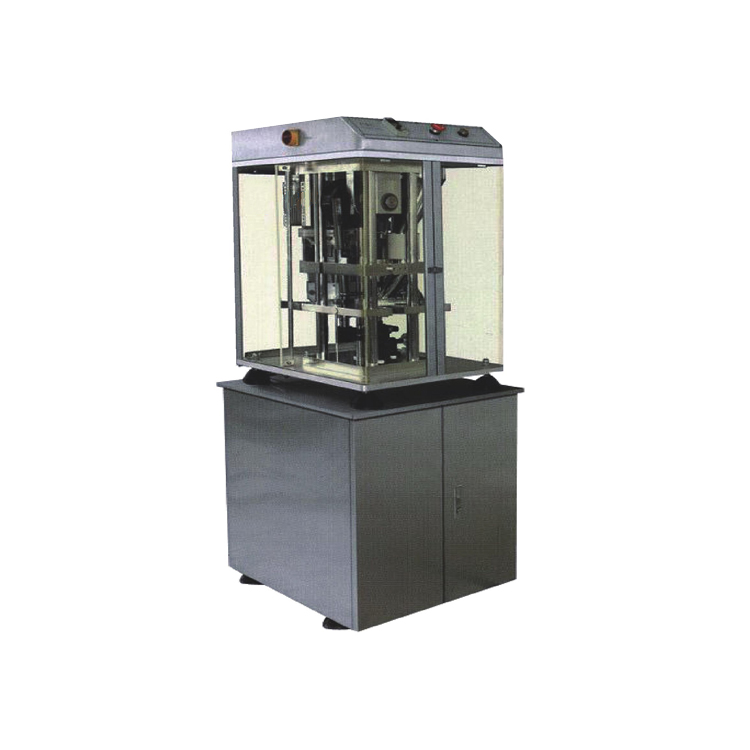

This model is a IPDT single station press that is specially designed for used in labo ratory of production in small batches. It can press all kinds of granular materials into round tablets. The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adiustable . The oute rappearance of the machine is well designed with a compact structure. It features a number of advantages such as reasonable layout, small dimension and large pressure. It is a small size equipment that Compliance with GMP requirements.
This model is a IPDT single station press that is specially designed for used in labo ratory of production in small batches. It can press all kinds of granular materials into round tablets. The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adiustable . The oute rappearance of the machine is well designed with a compact structure. It features a number of advantages such as reasonable layout, small dimension and large pressure. It is a small size equipment that Compliance with GMP requirements.
Technical parameters
|
參數(shù) |
Date |
DP 50 IPTD |
|
最大壓力 |
Max Pressure (kn) |
50 |
|
最大片徑 |
Max Dia. of Tablet (mm) |
25 |
|
填充深度 |
Max Depth of Filling(mm) |
20 |
|
最大片厚 |
Max Thickness of Tablet(mm) |
0.5-8 |
|
生產(chǎn)能力 |
Production Capacity (pc/h) |
3600 |
|
電莊 |
VOLTAG (v/Hz) |
220/380 |
|
功率 |
Motor Power (kw) |
15 |
|
外形尺寸 |
Overall Size(mm) |
580 x 500 x 830 |
|
重量 |
Weight(kg) |
150 |
