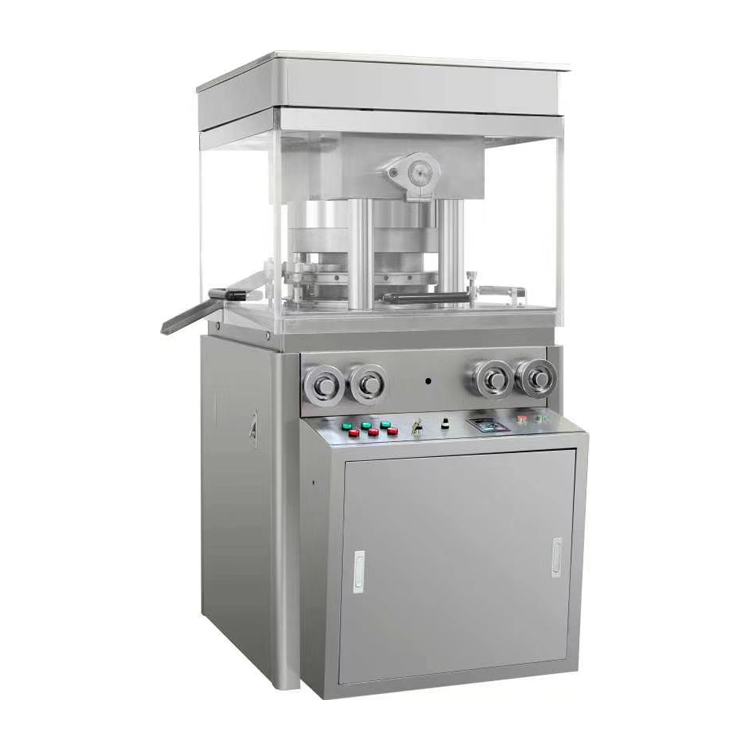

The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
Introduction:
The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
Application:
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Features:
1. The outside of machine is enclosed by stainless steel cover, working surface inside is made of stainless steel materials, which can keep surface luster and prevent from being intercrossed pollution, complying with GMP requirement;
2. Equipped with plexiglass perspective window to observe press statue, which could be fully opened for easy clean and maintain;
3. The controller and components are well arranged.
4. Frequency speed changing to control electrical component, which make sure convenient operation, smooth revolving, and safe accurate running.
| Model | ZP-17D |
|
Stations (unit) |
17 |
|
Maximum compression (KN) |
60 |
|
Max. Diameter of tablet to be produced (mm) |
20 |
|
Max. Filling depth (mm) |
15 |
|
Max. Thickness of tablet (mm) |
6 |
|
Diameter of the upper/lower shank (mm) |
27 |
|
Length of the upper punch (mm) |
115 |
