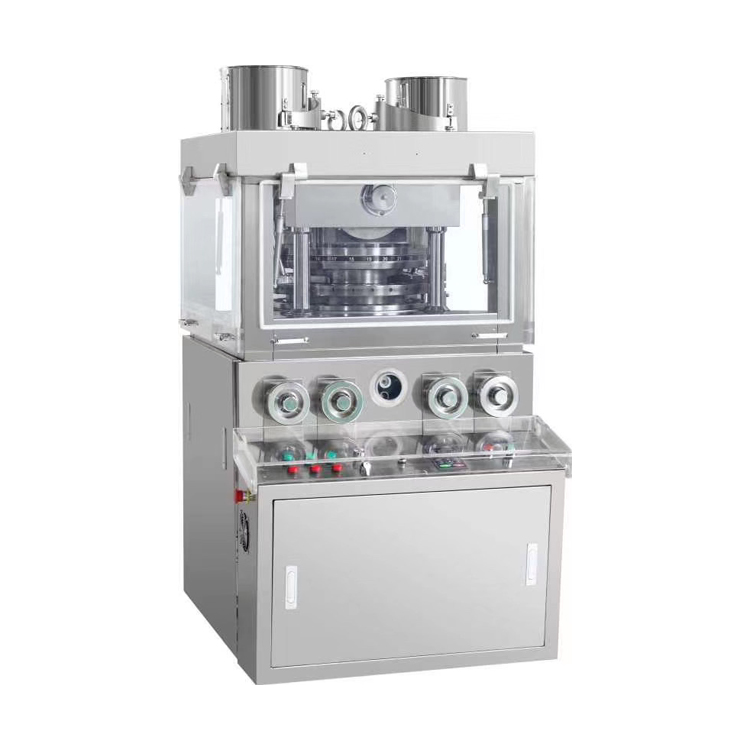

Home » Products » Tablet Press Machine » ZP -31D Single Rotary Tablet Compression Machine Touch Screen And PLC Controlled
Main application This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Summay:
Main application This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries. Feature The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier. The machine can press not only round tablets but also different geometrical shape tablets, annular tablets, and the tablets may have the impressed letters on both sides. A power suction unit is attached to take the residual powder during operation so that the blockage powder can be collected and be reused. An overload protection unit is included in the system to avoid the damage of the punches and apparatus. The machine’s worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.
Main Features:
1.The machine is compliance with the GMP requirement on the production of pharmaceuticals.
2.The compression parts is entirely separated from the driving mechanism.
3.The compression area is enclosed with transparent organic glass. To prevent contaminates. The compression area can be specially treated. All surface being smooth and easy to clean.
4.The mechanical buffer unit will prevent punches and apparatus from overload damage.
Technical parameters:
| Model | ZP-47D |
|
Stations (unit) |
47 |
|
Maximum compression (KN) |
100 |
|
Max. Diameter of tablet to be produced (mm) |
25 |
|
Max. Filling depth (mm) |
18 |
|
Max. Thickness of tablet (mm) |
6 |
|
Power of the motor |
4 kw |
|
Weight |
1950kgs |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
This model is a IPDT single station press that is specially designed for used in labo ratory of production in small batches. It can press all kinds of granular materials into round tablets. The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adiustable . The oute rappearance of the machine is well designed with a compact structure. It features a number of advantages such as reasonable layout, small dimension and large pressure. It is a small size equipment that Compliance with GMP requirements.
Learn More
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materi-
als into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic
and metallurgical industries.
Develop ZP-17D model according to GMP standard .offer such laboratories of R & D institution as the pharmacy ,food ,chemical industry ,etc .
It is the best ideal equipment to trial-produce or produce in small batch to suppress various kinds of particles form grain to ring tablet and abnormity .Stainless steel packaging of the appearance .operating room Lucite all opened new-type structure closed completely to clear bright .without any dead angle to remove incidentals .The machine has the advantage of little volume .light weight ,neat appearance ,safe warring device , complete dust collect performance .low noise .Rotary adopt step less frequency conversion to adjust the speed .
