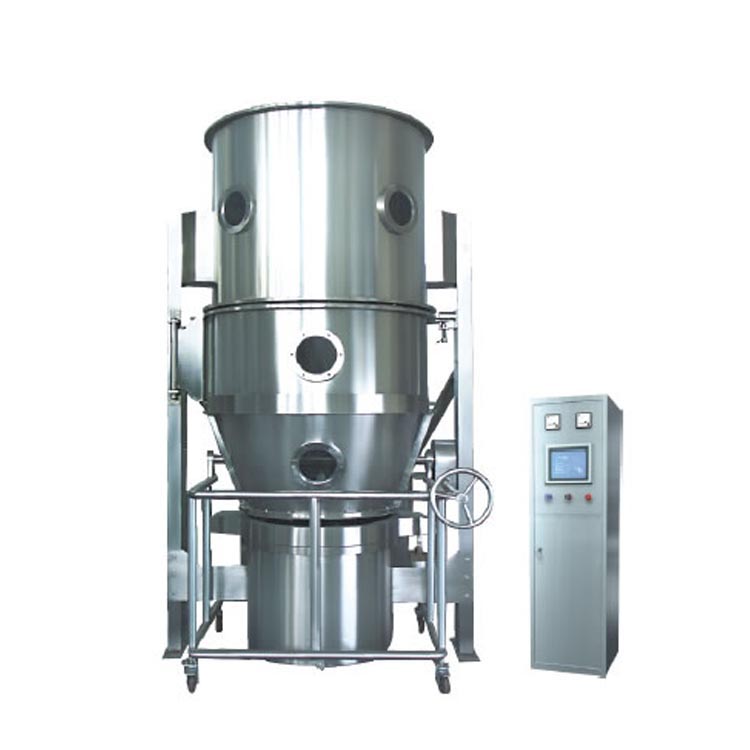

Home » Products » Fluid bed » FL-200 Factory Supply High Performance Vertical mini granulator fluid bed
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Product Description
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Application
1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials
Functions
1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
Technical Parameter
|
Model |
200 |
|
Volume (L) |
670 |
|
Amount to be treated (kg/per time) |
100/300 |
|
Power of fan (kw) |
30 |
|
Consume of steam 0.4MPa(kg/h) |
282 |
|
Consume of compressed air (m3/min) |
1.1 |
|
Noise,dB (A) |
(fan is installed separately) ≤75 |
|
Main machine height (m) |
2.34×1.7×3.8 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Learn More
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Learn More
1.Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.
2.Large granules, small block, viscous block granular materials.
3.The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.
Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on. Large granules, small block, viscous block granular materials. The materials such as Konjak, polyacry lamide and so on, which will have the volume changed during drying.
